Big light. Small effort.

KTL5

Big light. Small effort.

KTL5

WHY KTL5?

The KTL5 is a heavy-duty light tower built for maximum coverage. Designed for temporary setups where you need a lot of light without a complex installation - perfect for events, outdoor operations, and mobile teams.

KEY ADVANTAGES?

  • Telescopic mast up to 5.3 m
  • LED lighting up to 65,000 lumens
  • Rugged design, yet mobile and quick to deploy
  • Modular expansion options (battery, charger, and driver)
  • Seamlessly integrates into the KASANAKI ecosystem with power stations and battery packs
  • IP65 rating

Ideal for: large events, construction sites, outdoor productions, technical installations, and industrial applications.

ACCESSORIES RECOMMENDATION

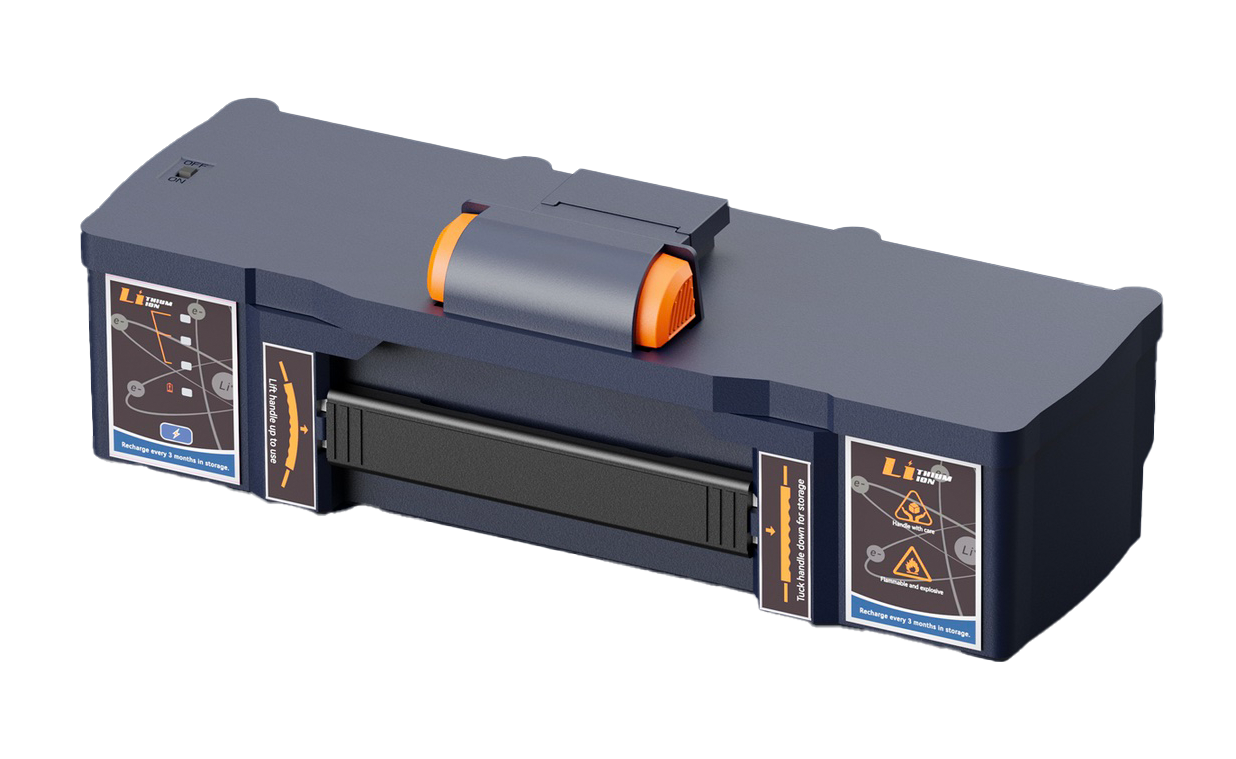

KTL5BATT

  • Rated Power: 490Wh
  • Rated Voltage: 24,5V
  • Rated Capacity: 20.0Ah
  • Working Humidity: 1~98%
  • Working Temperature: -10~50℃
  • Battery Cycle Life: 1000 times
  • Dimension: 313x109x101mm
  • Weight: 3.0kg

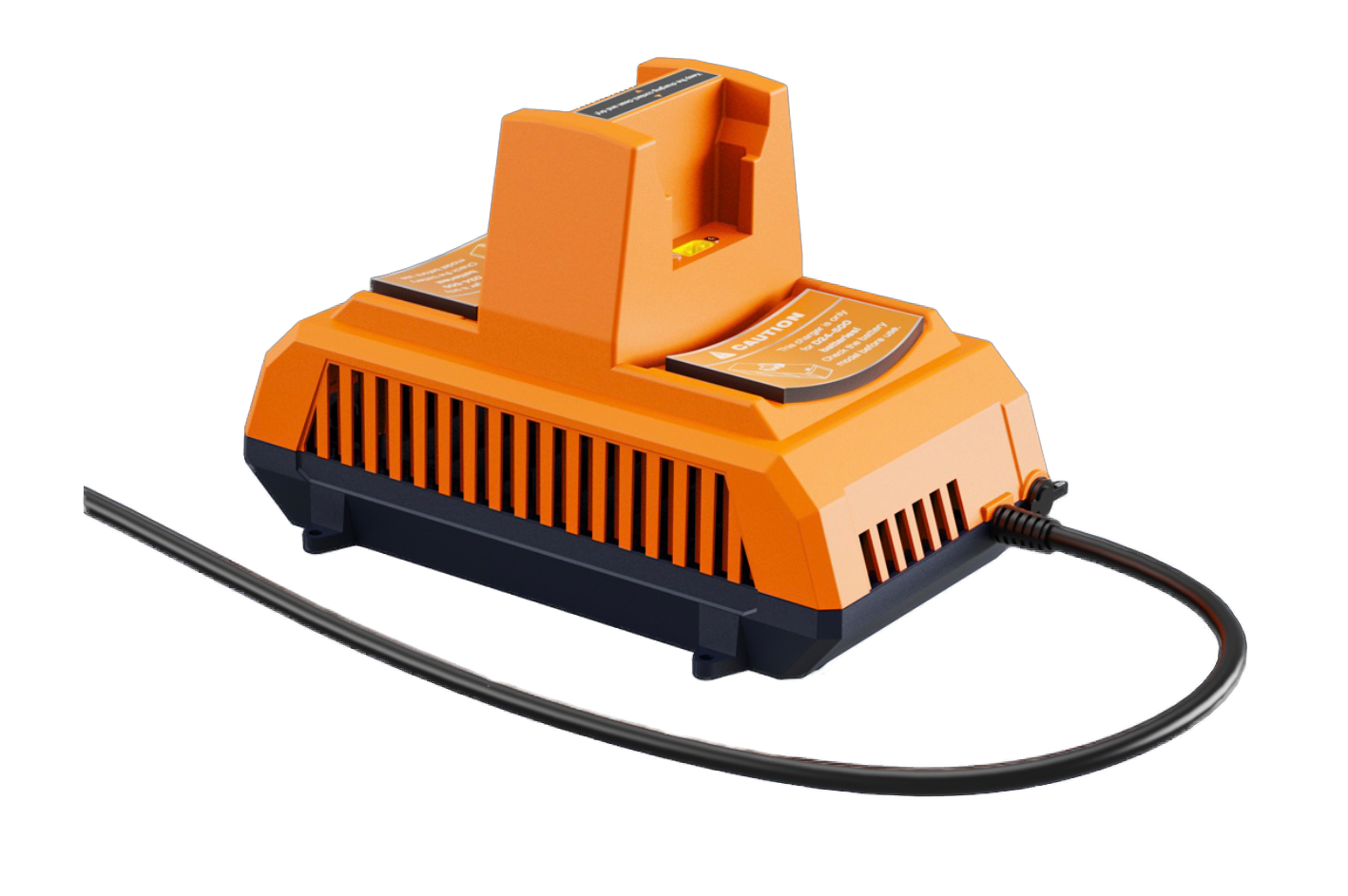

CHARGER - KTL5CH

  • Input: AC 100-277V 5A
  • Output: 29.4V 6A
  • Charge Time: 3h (Single D24-500x1)
  • Working Temperature: 0~50℃
  • Working Humidity: 20~98%
  • Dimension: 251x154x153mm
  • Weight: 1.25kg

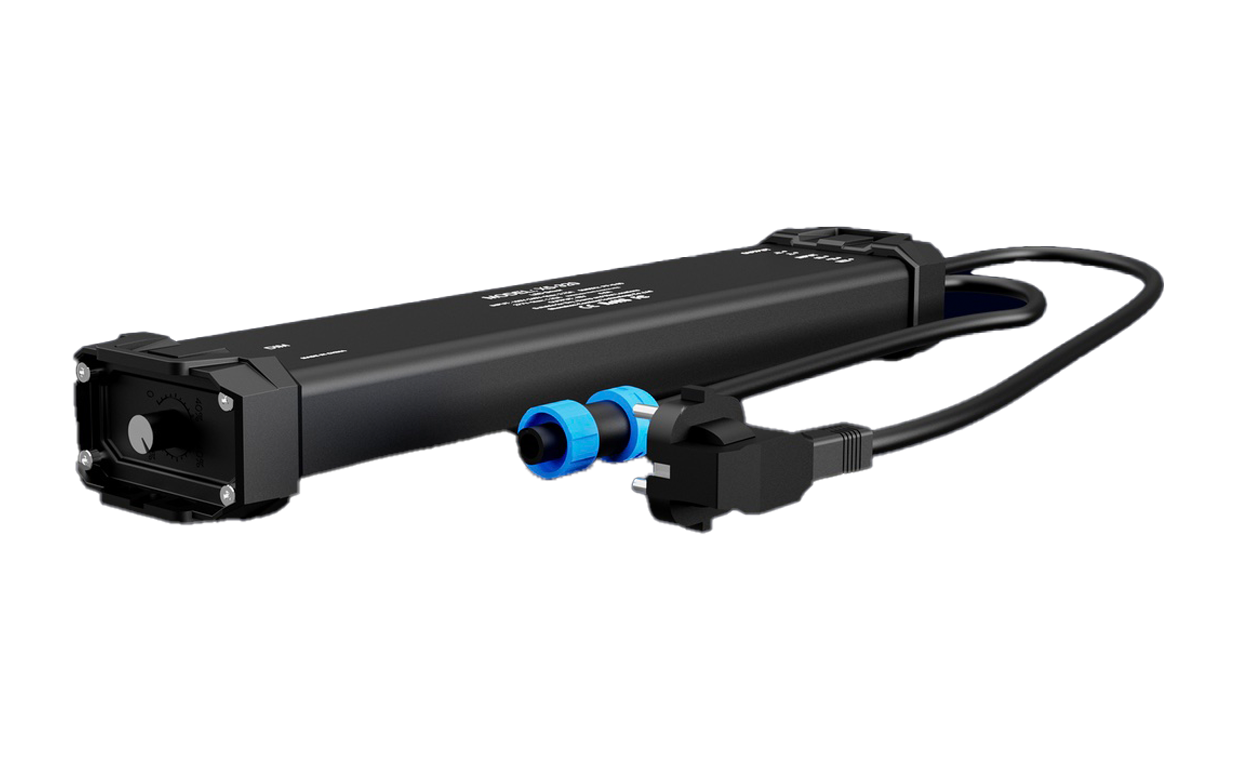

DRIVER - KTL5DR

  •     Input: 100-240V~Max：6A 50/60Hz PF>0.95
  •      277V~Max: 2.5A 50/60Hz(
  •     Output: 48V    7.2A  24V    2A
  •     Dimension: 405x87x51mm
  •     Weight: 2.8KG

Interested in renting or buying the KTL5?

Fill in the form and we’ll get back to you as soon as possible.
